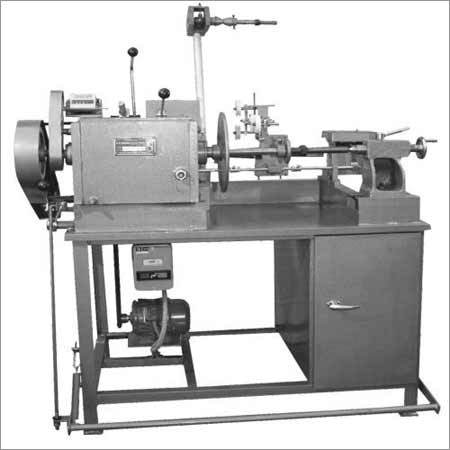

Automatic Coil Winding Machine

Automatic Coil Winding Machine
Automatic Coil Winding Machine
Product Code : 17
Product Description

Automatic Coil Winding Machine

We are a highly renowned manufacturer, exporter and supplier of a wide range of Automatic Coil Winding Machine. This machine is manufactured by our professionals using quality approved raw materials in compliance with international standards. Highly appreciated for its rigid construction, easy installation, high performance, reliability and energy efficiency, this machine is offered in various specifications as per the needs of the clients. Further, our Automatic Coil Winding Machine can be availed at very affordable rates by our clients.

Specifications:



·         "PCGL" High precision all geared coil winding machine fitted on a fabricated base frame, geared head is fitted with face plate, having radial slots for holding the winding formers.

·         A foot pad is provided with machine for gradual increasing & decreasing the machine’s speed.

·         Provision for change of speeds through gear unit is incorporated inside the gear box of the machine.

·         Two hand levers is provided with the machine, one lever for precise setting of layer for different wire size and other lever for manual reverse of wire at the end of each layer.

·         The machine is complete with motor, starter, A. C. frequency drive, counter meter, tail - stock, reel carrier, v-pulley, v-belt, safety guard of belt, belt tensioner, winding mandrel, etc.



Technical Specifications

Range of wire

10 to 30 SWG

Maximum diameter of coil

450 mm

Layer width

15 to 300 mm

Distance between center

480 mm

Winding speeds approximate

90, 180, 360 r. p. m.

Diameter of face plate

300 mm

Height of Center over floor

1000 mm

More taper tail–stock

MT - 3

Motor H.P. / K.W./ R.P.M./A.C.P.H.

1/0.75/1440/three

Load Capacity between centers

100 kg.





P. C. GHOSH & COMPANY PVT. LTD.
17J, Rani Branch Road, Paikpara (B T Road), Kolkata - 700002, West Bengal, India
Mr. Avik Ghosh (Managing Director)
