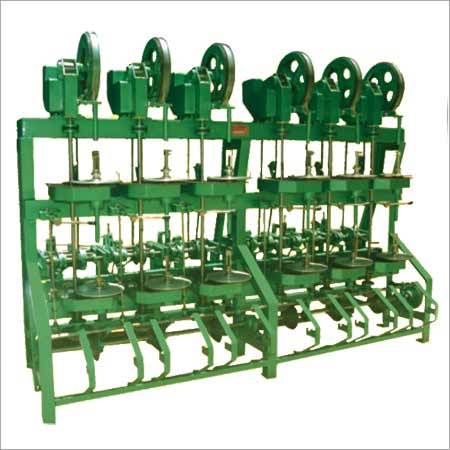

6-Head DPC Machine(Wire)

6-Head DPC Machine(Wire)
6-Head DPC Machine(Wire)
Product Code : 01
Product Description

6-Head DPC Machine(Wire)

Backed by rich industry experience and knowledge, we are providing an excellent range of 6-Head DPC Machine (Wire). This machine is manufactured at our state-of-the-art manufacturing facility using optimum grade components sourced from the reliable sources of the industry. The offered machine is treasured for reliable functionality, less maintenance, easy installation and longer functional life. This 6-Head DPC Machine (Wire) is passed through stringent quality checks to ensure its flawlessness.



Specifications:



  • "PCGL" High precision all geared 3 - speeds D.P.C. wire / strips covering machine ideally suited for large scale accurate production with quality finished in normal wires / strips.
  • Reception drum is fitted with reduction gear head for pulling the finished materials.
  • Provision for speed changing according to percentage of covering is incorporated in gear head.
  • A hand lever is provided with the machine by which gradually increased and decreased the machine speeds.
  • One attachment is fitted with the machine for layer winding with automatic reverse of wire / strips at the end of each layer.
  • A mechanical clutch device is fitted with the machine for tensioning the wire / strips according to the dimension.
  • Chain & Sprocket system is incorporated from gear head to tensioning unit and coil winding unit, belts & gear system is also incorporated inside the spinner tray.
  • The machine is complete with abonite plate for paper pad, paper pad tensioning device with two nos. general dies for top & bottom tray, rough & final coil carrier, v-pulley, etc.



Wire

We Covering range (Copper/Aluminium)

10 swg to 22 swg

Ho. Of Head

2, 3, 4  & 6

R.P.M. of paper serving hed / spinner

shall be 1400 approx.

No. of Spinner

Two

Rotation of Two Spinner

Clockwise & Anticlockwise

Covering Range

1-2 Layer Covering

Paper and Size

200 mm dia x 500 mm bore x upto 10 mm wide

Take-up bobbin

400 mm dia x 200 mm traverse length

Pay-off

400 mm dia x 300 mm length

Production capacity

From 3 meters to 5 meters per minute with the help of Change gears for different sizes
